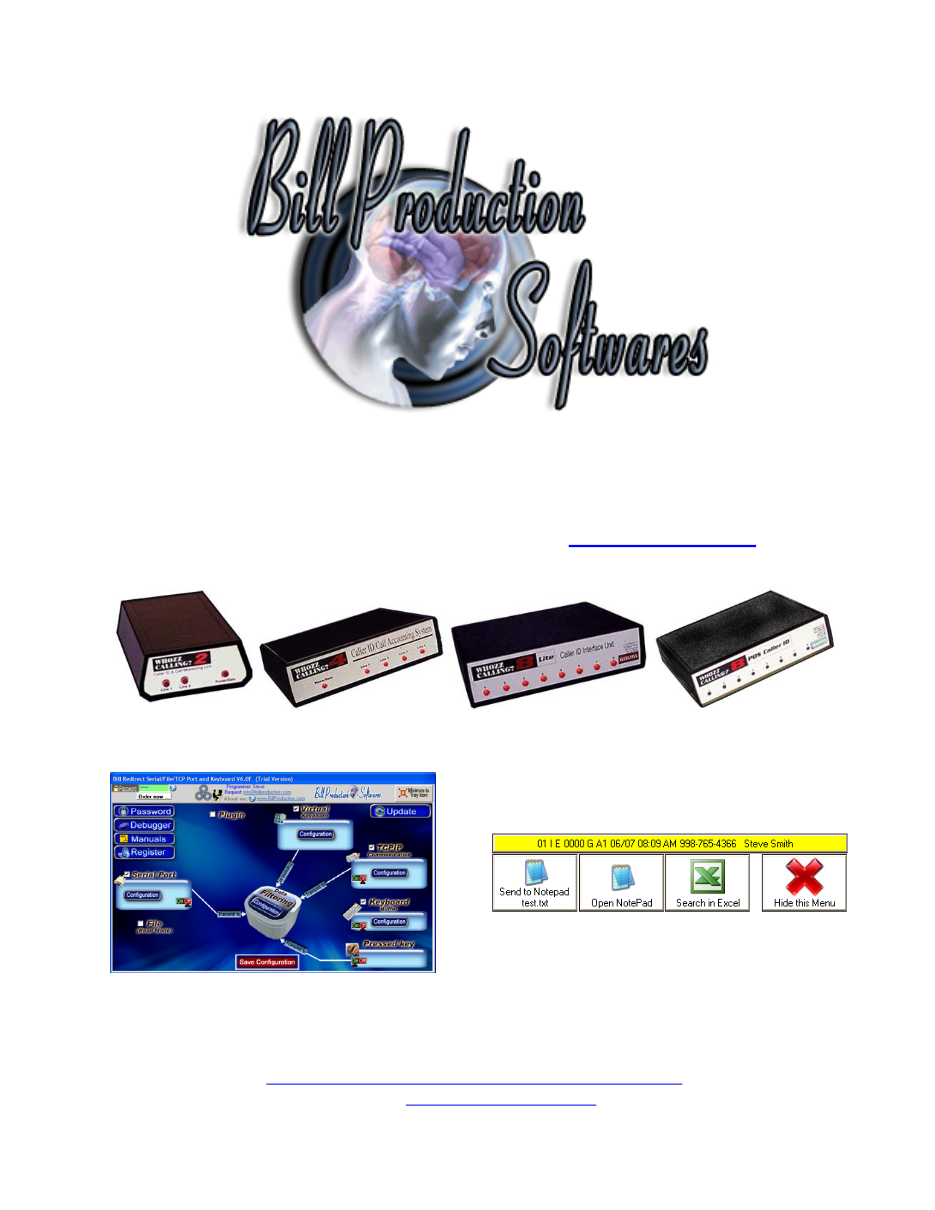

Bill Redirect Application can
Send Caller ID phone number into any windows application
Hardware equipment available via:
www.callerid.com
(Products: Whozz Calling? 2 or 4 or 8 line models)
Use this documentation with the product : Bill Redirect Version 6.0F or more.
(Rev.: 24/02/2013)
Application to Send Caller ID phone number into any windows application :
Email:
info@BillProduction.com
1
SOFTWARE
DESCRIPTION
BillRedirect application works with all
'Whozz Calling'?
products !
This professional application enables
'Whozz Calling'?
devices to send
Caller ID phone number directly into your actual application.
No additional hardware or programming required !
Supported Operating Systems:
Windows 98,Me,2000,3000,XP,NT4, Vista, Windows 7, Windows 8
2
GENERAL INFORMATION
To configure this application you have to enter in the field password
www.billproduction.com
, In the
configuration options you have the possibility to change this password for what you want.
To close this software, type
END
in the password field.
Optional: You can download the complete manual of this application via this link:
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
3
This example shows how you can send Phone Numbers into
Microsoft Excel, Notepad and/or in your actual application.
Step #1
(General)
Download and install Bill Redirect software:
* IMPORTANT: Don't start it !
To close Bill Redirect, type
END
in the field password.
Extract this file:
into the directory:
C:\BillProduction.cfg\
Start 'Bill Redirect' software
4
Step #2
(Caller ID device serial port configuration)
In your system tray press on the small Keyboard Icon:
Enter in password field:
www.billproduction.com
Section
Serial Port
, press on button:
Configuration
In field 'Serial Port Number' enter the serial port number
where your
'Whozz Calling'?
device is connected.
Press on button:
Save Configuration
Press on button:
Minimize to Tray Icon
5
Step #3
(Test with the default configuration)
At this step you should see this CALLER ID default menu
Default interface description:
'
The yellow box is used to show the last or actual call information received
from your 'Whozz Calling'? device connected on your serial port.
'
You can press on button HIDE to hide this menu.
*
This menu will reappear automatically when a call is received.
* You can do ALT F9 at any moment to show this menu.
'
To move this menu, press on the menu with the left button of your mouse, move the menu where
you want and release the mouse button.
'
A log file is automatically created on your
C:\LOG_CALL_DATE.TXT
this file contain all calls.
Every parameter of this interface can be changed !
6
Step #4
(Button description and configuration)
Button
description
This button shows how this application can send the received phone number to any existing application
To test this button do this:
'
Open the file
c:\BillProduction.cfg\test.txt
with your Windows Notepad
'
Press on the button 'Send to Notepad test.txt'
'
At this time, you should see the caller phone number (number only) appear in the Notepad.
To change the configuration of this button and send the phone number in your current application
Follow the steps below:
'
In your system tray press on the small Keyboard Icon:
'
Enter in password field:
www.billproduction.com
* Now you're in configuration mode
'
To see/edit the configuration of this button: Press on button:
'
Use the field 'Button Text' to change the text on the button.
'
In the field 'String to send ' is push' there is:
{APP[
test
]}{TX_KEYB[{MULTIPLY[{STRING_MID[{BUTTON_TXT[00]},33,14]},1,#]}{ENTER}]}
'
Replace the word
test
by the title of the window of your software.
*
You can enter just a part of the title, for example if the window
title is '
my application software
' you can enter just a part
of the title for example:
my application
'
To add a keyboard sequence just before sending the phone number to your software'
For example
CTRL f
use this syntax:
{APP[
test
]}{TX_KEYB[
{CTRL}f
{MULTIPLY[{STRING_MID[{BUTTON_TXT[00]},33,14]},1,#]}{ENTER}]}
To see all possibilities, see end of this manual section "
Keyboard buffer output, possible values"
'
To test your new configuration press on button: Run
* Now you're in run mode
7
Step #5
( Button description and configuration )
Button
description
This button shows how this application can start a application with a phone number argument.
To test this button do this:
'
Press on the button 'Open NotePad'
'
At this time, notepad opens and it tries to open the file:
phone number received.txt
Example if the number received is
then
it will try to open the file
9987654366.TXT
To change this configuration and open a phone number file with your application
Follow the steps below:
'
In your system tray press on the small Keyboard Icon:
'
Enter in password field:
www.billproduction.com
* Now you're in configuration mode
'
To see/edit the configuration of this button: Press on button:
'
Use the field 'Button Text' to change the text on the button.
'
In the field 'String to send ' is push' there is:
{RUN_PRG[
C:\WINDOWS\NOTEPAD.EXE
{MULTIPLY[{STRING_MID[{BUTTON_TXT[00]},33,14]},1,#]}
.TXT
,3]}
'
Replace the
C:\WINDOWS\NOTEPAD.EXE
by the file that runs your application.
'
Replace the
.TXT
by your file extension.
'
Optional:
Use this syntax to automatically hide the menu after pressing the button:
RUN_PRG[
C:\WINDOWS\NOTEPAD.EXE
{MULTIPLY[{STRING_MID[{BUTTON_TXT[00]},33,14]},1,#]}
.TXT
,3]}
{BUTTON_HIDE[ALL]}
'
To test your new configuration press on button: Run
* Now you're in run mode
8
Step #6
( Button description and configuration )
Button
description
This button shows how this application can send the phone number received to any existing application
To test this button do this:
'
Open Microsoft Excel
'
Press on the button 'Search in Excel'
'
At this time, you should see the caller phone number (number only)
searched in excel.
Example if the number received is
then
it will try to search
9987654366
To change this configuration and search the phone number received in your current application
Follow the steps below:
'
In your system tray press on the small Keyboard Icon:
'
Enter in password field:
www.billproduction.com
* Now you're in configuration mode
'
To see/edit the configuration of this button: Press on button:
'
Use the field 'Button Text' to change the text on the button.
'
In the field 'String to send ' is push' there is:
{APP[
Microsoft Excel
]}{TX_KEYB
[{CTRL}f
{MULTIPLY[{STRING_MID[{BUTTON_TXT[00]},33,14]},1,#]}{ENTER}]}
'
Replace
Microsoft Excel
by the title of the window of your software.
*
You can enter just a part of the title, for example if the window
title is '
my application software
' you can enter just a part
of the title for example:
my application
'
Replace
{CTRL}f
by your keyboard sequence to sending before phone number.
* To see all possibilities, see end of this manual section "Keyboard buffer output, possible values"
'
To test your new configuration press on button: Run
* Now you're in run mode
9
Step #7
(Replace phone numbers by your own numbers)
OPTIONAL
This
optional
step show how you can replace the received phone numbers by your own numbers '
follow the steps below:
'
In your system tray press on the small Keyboard Icon:
'
Enter in password field:
www.billproduction.com
* Now you're in configuration mode
Press on:
Data Filtering Configuration
For example to replace the phone number
800-555-1212
by the costumer number
12345
Press on button:
ADD
In the field 'Search' enter:
800-555-1212
In the field 'Replace by' enter:
12345-------
* The number of replacement must be of the same length as the phone number received, so we add
characters
-
at the end to reach the same length.
The line you add should be the first in the list. To move the line in first position use the up arrow
Press on button:
Save Configuration
Press on button:
Minimize to tray icon
Test
10
Step #8
(Send received phone numbers to several computers)
OPTIONAL
This
optional
step shows how you can send the phone numbers received to multiple computers via your
actual network.
'
In your system tray press on the small Keyboard Icon:
'
Enter in password field:
www.billproduction.com
* Now you're in configuration mode
Press on button:
TCPIP Communication Configuration
Take in note the IP address:
in our case is 10.1.52.225
Take in note the Port number:
in our case is 1661
Press on button:
Minimize to tray icon
11
Step #9
(Slave computers configuration)
OPTIONAL
This
optional
step shows how configure each Slave Computer via your actual network
Do this step in each slave computer:
Download and install Bill Redirect software:
* IMPORTANT: Don't start it !
To close Bill Redirect, type END in the field password.
Extract this file:
into the directory:
C:\BillProduction.cfg\
Start 'Bill Redirect' application
In your system tray press on the small Keyboard Icon:
Enter in the password field:
www.billproduction.com
* Now you're in configuration mode
Press on button:
TCPIP Communication Configuration
In the field 'IP address' enter the address noted before' in our case is:
10.1.52.225
In the field 'Port' enter the port number noted before' in our case is:
1661
* If your configuration is correct, the status after 30 seconds' should display
CONNECT
Press on button:
Save Configuration
Press on button:
Minimize to tray icon
Test
12
For more documentation visit:
If a problem persist or to do more
use our
Application configuration and integration assistance
It's free, fast
(usually the same day)
, and efficient !
Submit your case to
info@billproduction.com
and receive a customized solution !
13
PERSONALIZE
You can personalize our application with your company name, logo, skins, password, directory.
..
With this
possibility you can distribute our application with your company information !
The end user, will think that
you are the creator of this application !
- To Extract the current configuration setting, just type in the field password:
SAVE_SKIN
- After this action, a message box appear to indicate where is the configuration.
- Now you can modify this configuration files for what you want (Skin*.*).
- To re-load your skin modification type in the password field:
LOAD_SKIN
*At startup our application load automatically your configuration
*To open the mouse position monitor, type MOUSE in the field password and move the main window in the left top corner.
How change the default configuration directory:
*By default the configuration of our application is in the directory: C:\BillProduction.CFG\
To change this directory:
- In the same directory that our .exe application or in your C:\ modify the file:
BPCFGDIR.TXT
* This file contain the default configuration directory.
* Several BillRedirect softwares in differents computers, can use the same directory over the network. If the
configuration changed in a computer, then other computers automatically synchronize in the next 5
seconds.
All the configuration is by default in C:\BillProduction.cfg\*.* then to duplicate the configuration from a computer to another,
just copy this directory.
* Don't forget to close Bill Redirect on target computer before copy the configuration.
For more flexibility/options or an installation package build for your company:
info@BillProduction.com
*Also available on request, all our advertising (PDF format) are available in source mode (Document Word),
send your request by e-mail to:
info@BillProduction.com
